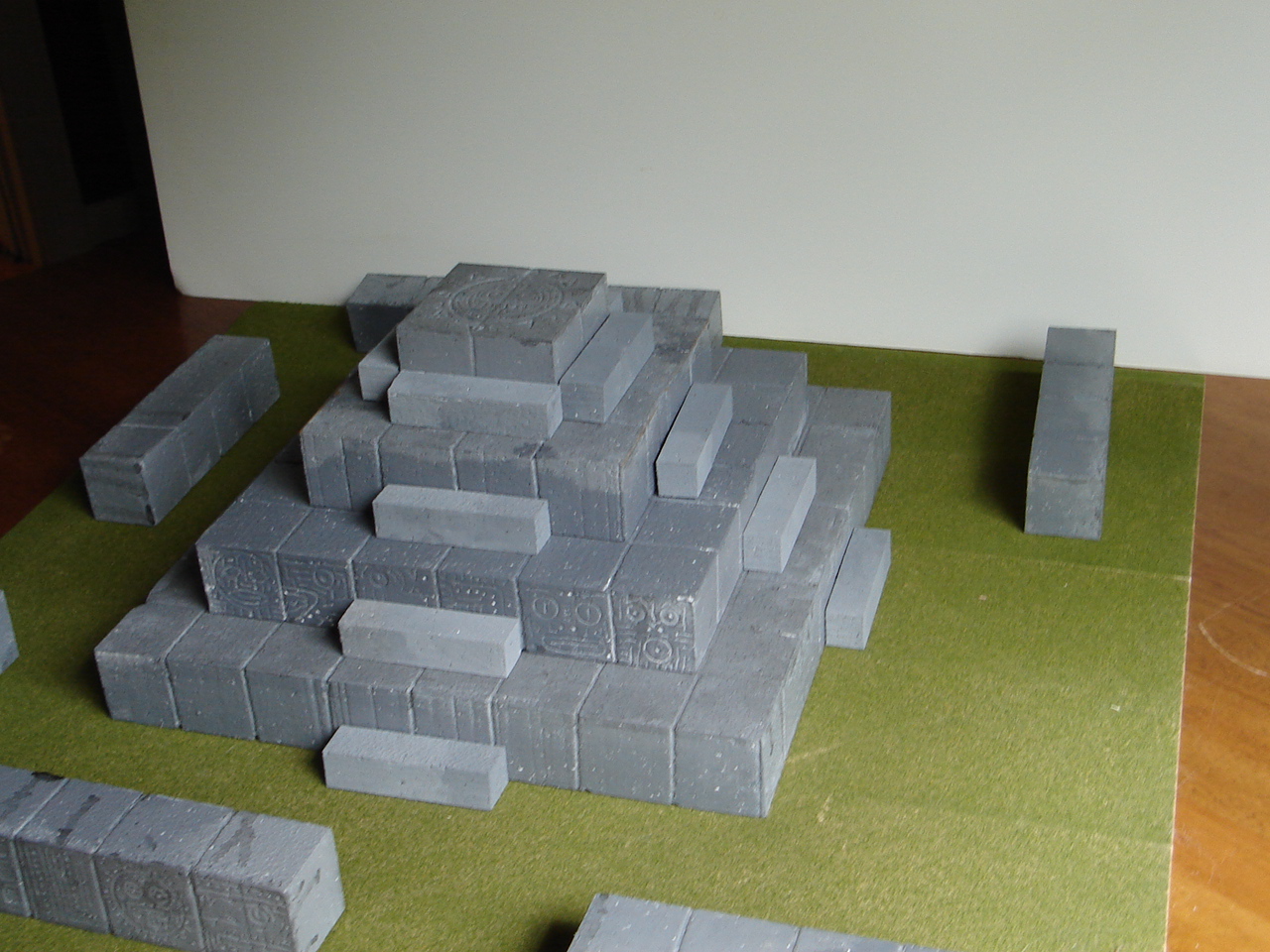

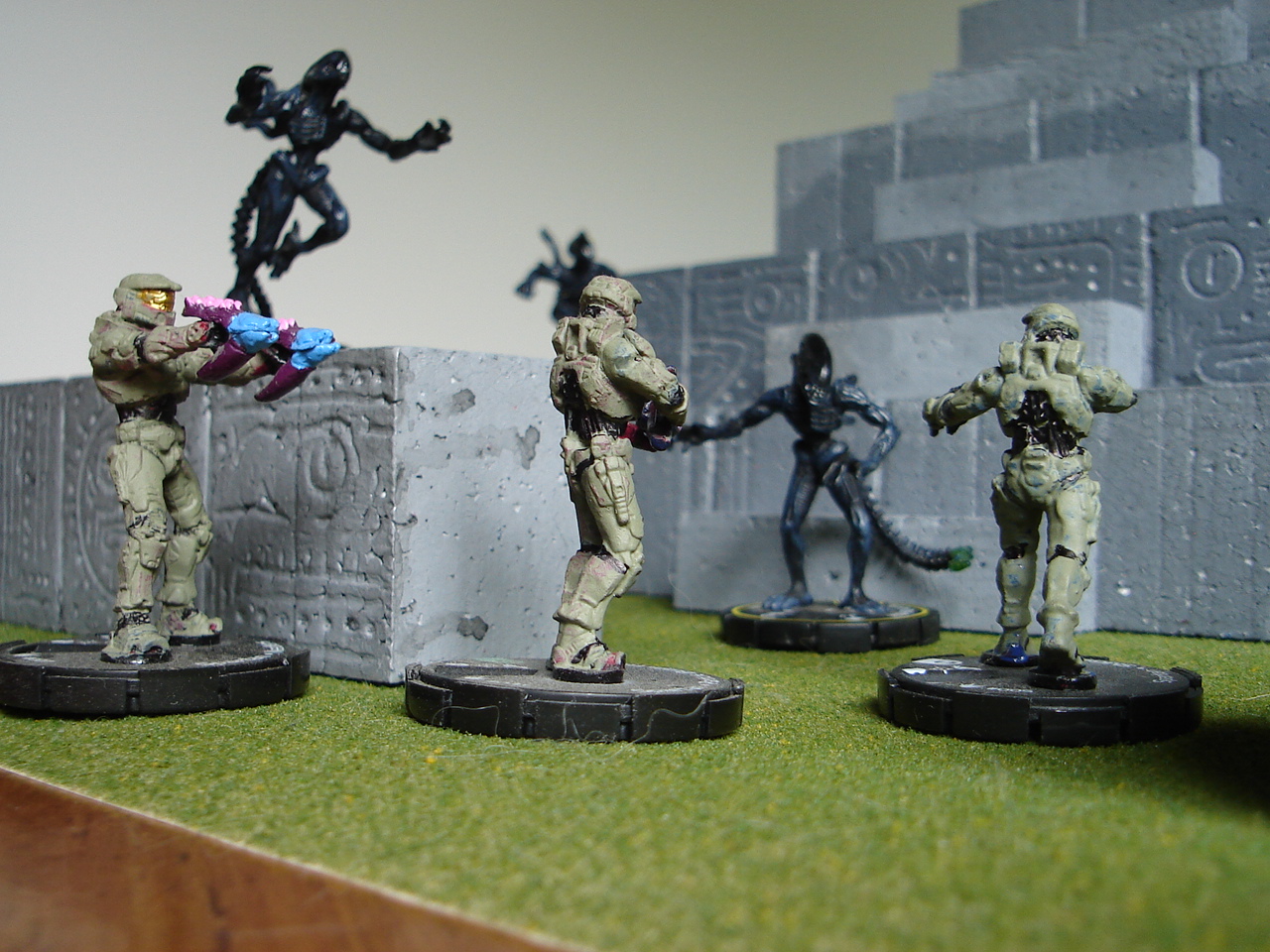

Mayan Temple

OK, this is a pretty simple one, but very effective. The good old mayan/aztec/whoever temple. It is a pretty good starter piece, as all you are doing is making some straight cuts for the pieces. I think we've added something really nice, though.

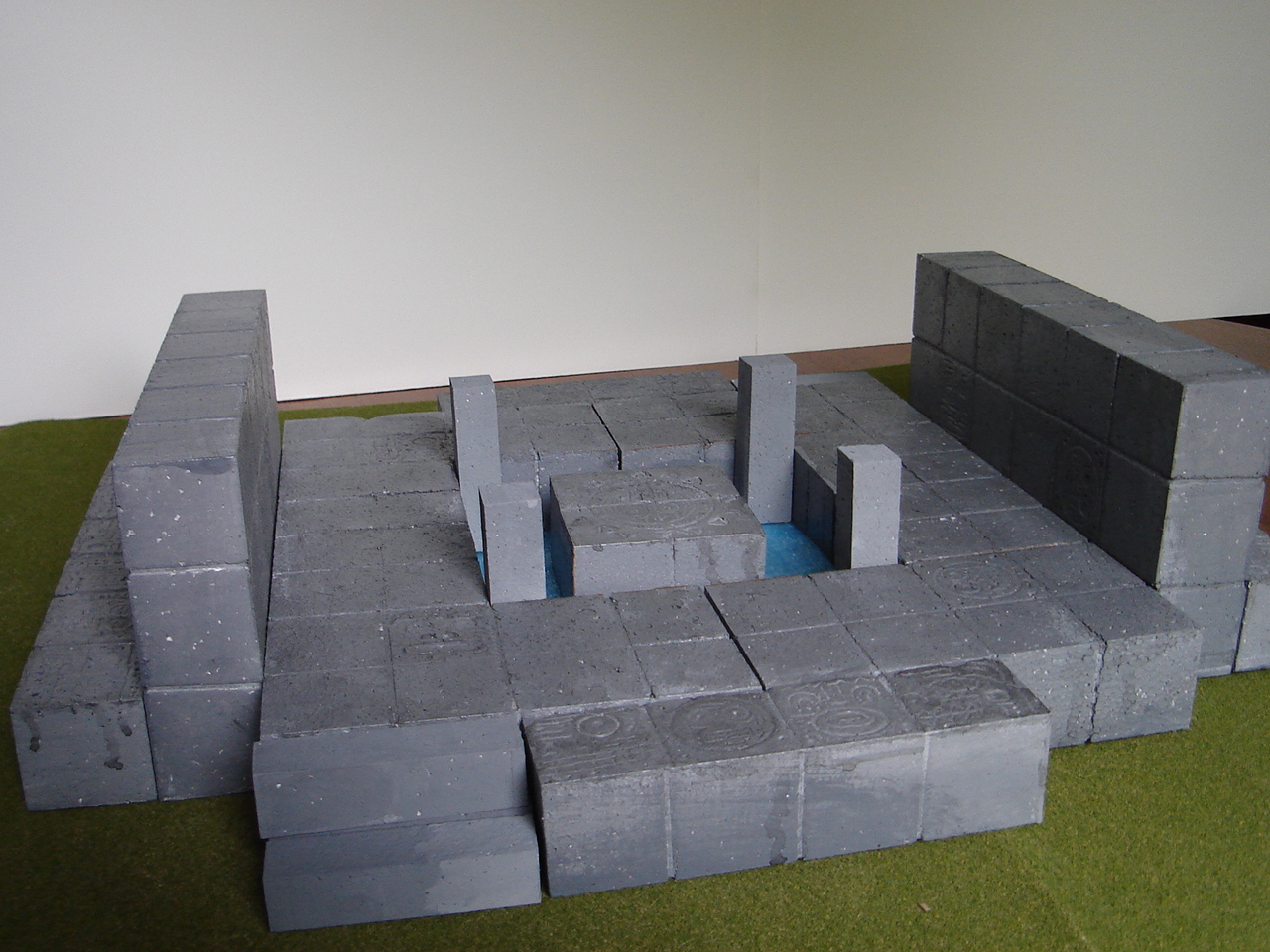

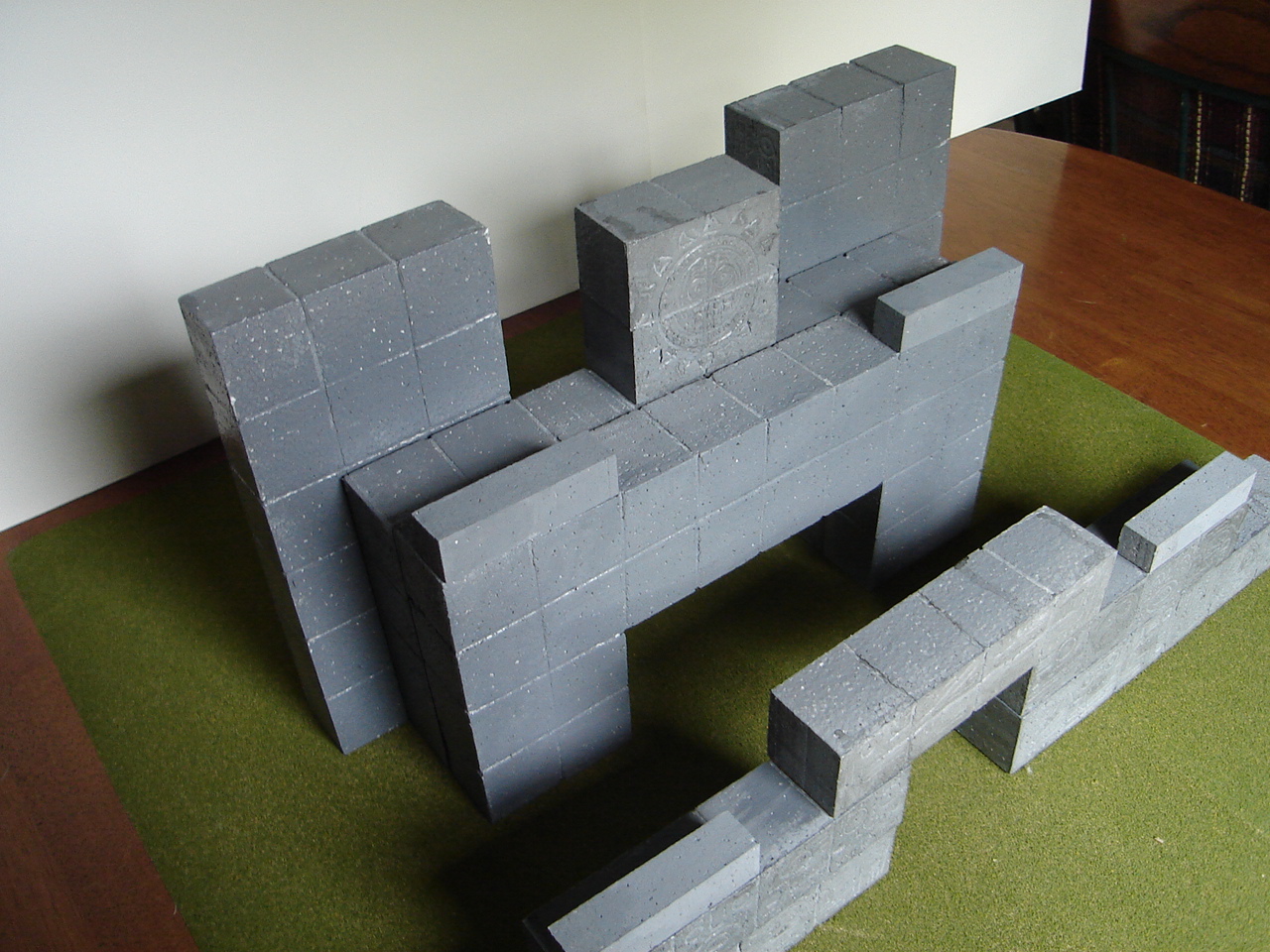

First, you will notice that the base piece has a "hollow" part. You can do this since in the temple final layout, the piece on top covers the hole. By leaving two "block widths" around the outside, you still get a firm, solid piece when you stack them up. The hole itself is actually the Tier 3 piece, so it's like an extra (small) piece for free. I like free. And cutting this out doesn't require mad hotwire or knife skills. You can just cut the piece into two block strips, cut out Tier 3, and then glue the base pieces back together.

The second thing I like about this approach is we don't have a fully assembled piece and the big slabs are broken up (without sacrificing stability). This makes it much easier to store (can you Tetris it back into a rectangular prism?) and transport. It also allows for multiple configurations. I like being able to use a terrain piece in multiple ways. It's like getting a bunch of temples all for the price of one!

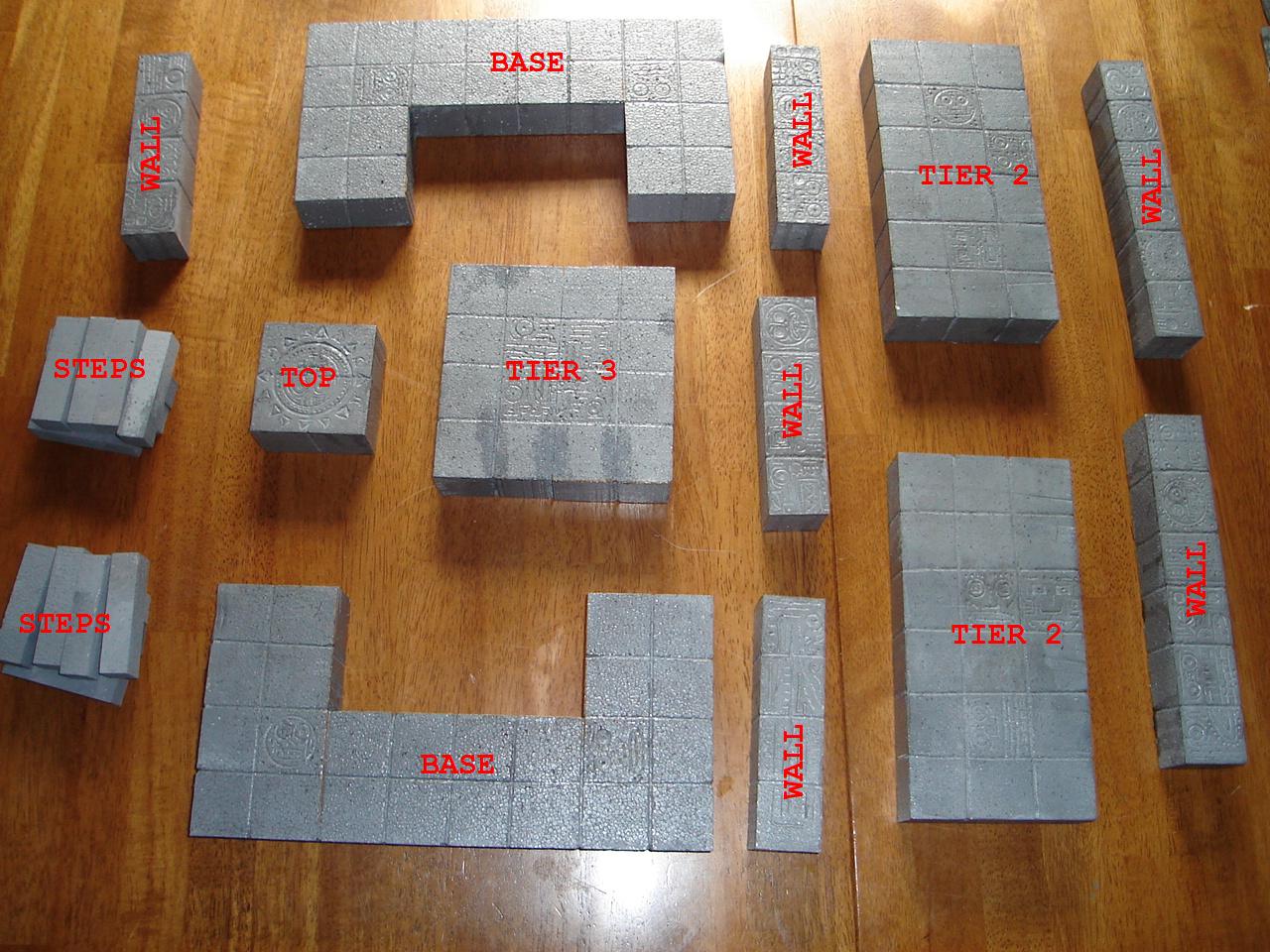

Click the picture to slideshow through the breakdown of pieces and some assembly options.

Simple Terrain: Industrial Outbuilding and Shelter

This is a beginner accessible piece of industrial terrain that has the flexibility for more experienced builders to expand and elaborate, or just to knock out a couple simple pieces in a short period of time.

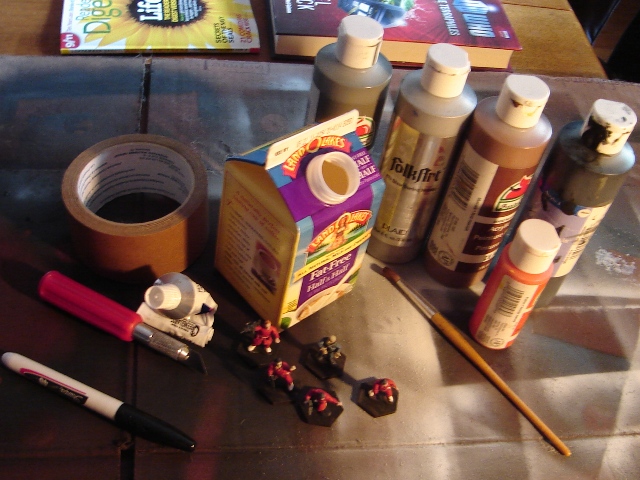

Materials

The main piece here is a one pint creamer container. It already has a basic shape that is usable and it is made from some pretty thick, treated card, so the resulting model will be plenty sturdy. One key issue is to make sure you rinse it well! I like to rinse, then give it an extra swish with a shot of bleach, just to make sure. This is mostly because I don't want cockraoches and waterbugs moving in to my terrain because they smell food. I use a lot of food containers, and haven't had problems. Mostly because I have friends who have had problems using food containers. Wash it out.

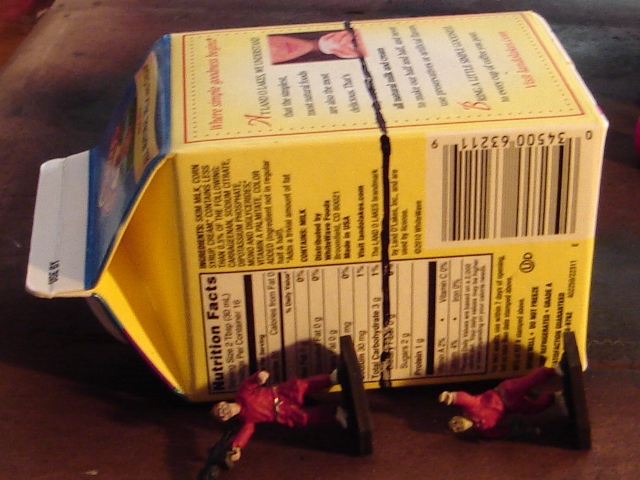

Gauging the Height

Since this is not a microprecision scale model of an existing structure, we have license to define things how we like. the length and width are already done for us, so it is up to us to pick a height that will look good with our figures. While not completely to scale, in general, I find that having the eaves one head taller than the figures looks good from arms length. Oh, look ... we used another figure to measure the size of the bottom ... I wonder why...

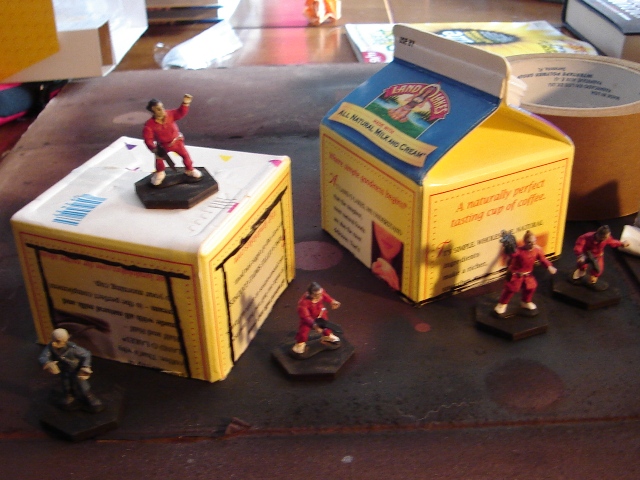

Basic Forms

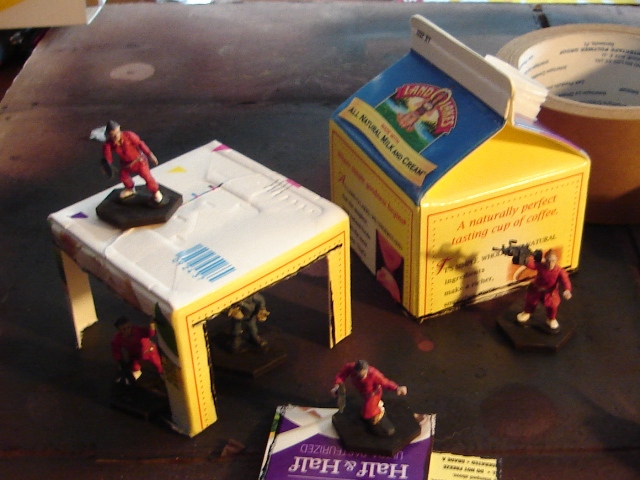

Oh! I see why now. For the full pint, we get a house shaped building and an awning/shelter. (We even gave that away in the title). The next part is to draw lines and cut out the sides of the shelter so it has free communication. We made the "legs" of the shelter double width. I eyeballed the lines for the sides, but feel free to measure and mark them. I have a decent degree of experience (read: I have screwed up a lot of projects), so I feel comfortable eyeballing it for this level of project.

More Cutting

Things are starting to shape up better now. Next thing is to notch the tops of the legs so you can fold each side in half. Then half of the leg will be folded into the inside and taped together. This will make sense when you see look at the next picture. Also, I hope noone pitched the extra pieces because now it is time to cut them up for additional detail. You will need a door. The remaining pieces can be cut up for slats, hole covers, window blinds, etc. Whatever. You need to leave one of them alone for later.

Details

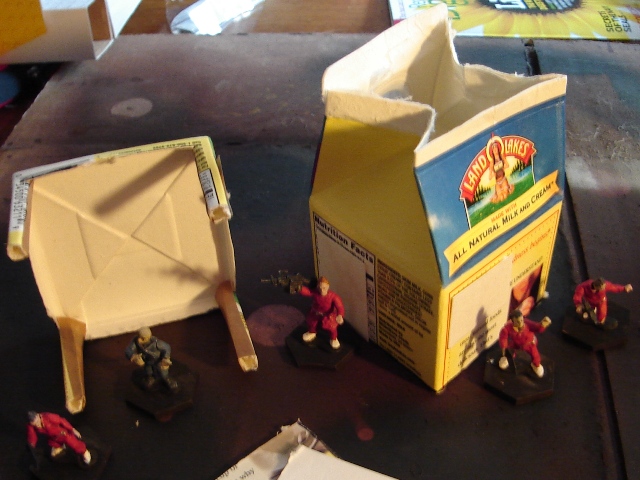

Hopefully you can see what all the fuss about folding and extra stuff on the legs was. If this gets too frustrating, feel free to leave the legs as just L pieces instead of closing them off. We've also opened the top and cut off three sides of the flap, leaving one big piece that we will fold over when we close it back up. You can also see the door and window placement. Double doors or more elaborate shapes like hatches and meshed doors are also good. Don't worry about how square it looks now ... we'll spice it up in a minute.

A Little Closure

We have the top closed back now, just by folding the opening back together and gluing the flap down. That makes a huge difference in style from the way the carton comes and is as easy as can be. The next two steps are equally simple and yield awesome results. Now its time for a little ventillation.

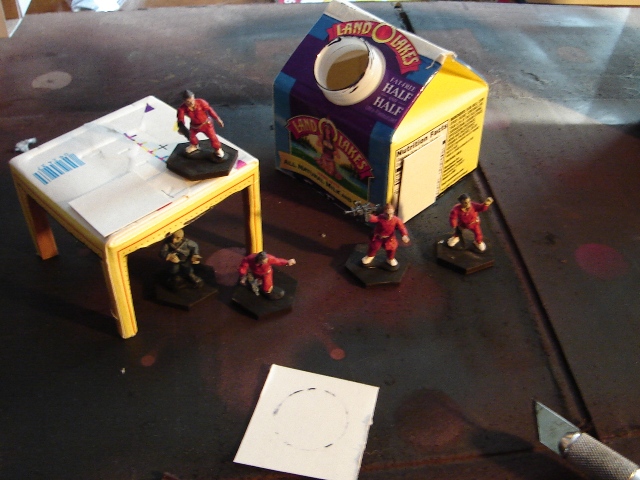

Marking the Circle

Since we have the cream container with the spout, it seems a wase not to use that. So we are going to put a fan blade in it. First, we need to size the fan so it fits in the spout. You can spend a lot of time measuring and marking circles. Or, you can just smear ink all along the edge of the circle and press it on the piece like a stamp. I chose the latter.

Honing Your Blade

We are going to use a technique I saw on Terragenesis to make a fan blade for the spout. First, cut out the circle. Go ahead and cut it big - it will be easier to trim it later than to try to futz with one that is too small for the spout. Now mark the circle in eigths and cut slits. I used eights because it is pretty easy to mark halfsies, mark halfsies again, and then one more time to get fairly even eighths. You can really go for any number you want. Now, going around the circle, fold up one side of the blade. Just glue the blade in the spout. That's it!

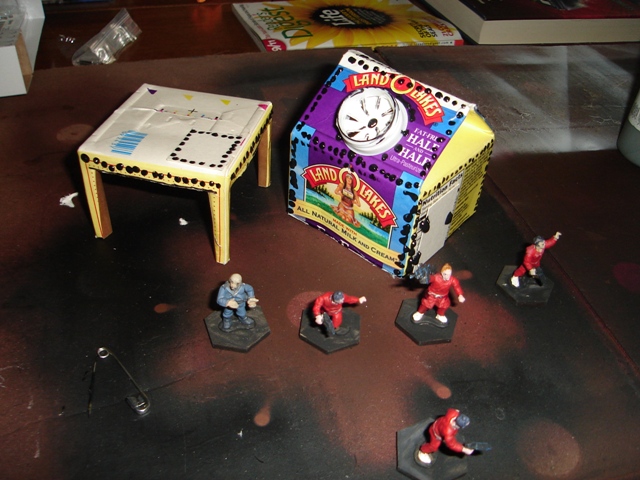

Assembled

Now with the pieces assembled, I want to add one of my favorite details -- rivets! Nearly every manufactured thing from the mid 19th century or later looks cooler with some rivets on it. There are many different ways to add rivets, and many of them are fiddling. If you are going for an accurate reproduction, you should fiddle away. But this is a little auxilliary piece, so I am using "puff paint". Puff paint is the latex paint pen thing you find in craft stores for making raised designs on fabric. When it dries, it shrinks a little, but overall, it leaves a raised blob of latex. So, I just grab a bottle and start leaving dots wherever I think they would look good. Mine aren't evenly spaced or the same size, but they were quick. If you want more control, you can certainly take more time, brace your hand against a rip fence, and even out down guide marks beforehand. Note that the puff paint also makes nice hinges and handles for doors and hatches.

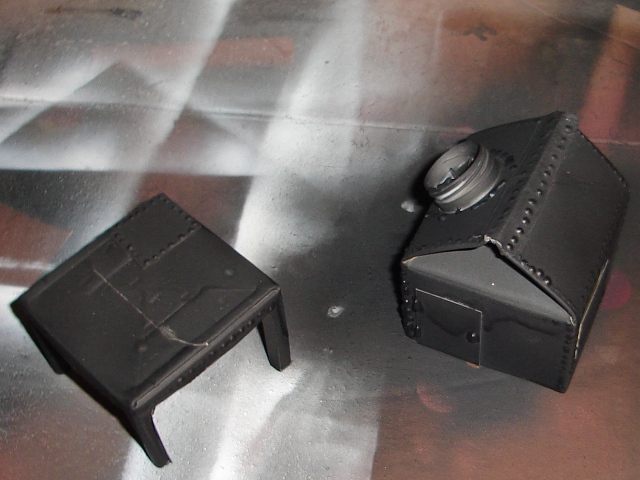

Primed

This is the longest part of the project. I took the pieces outside and spraypainted them with Rustoleum black primer. I think this is vital to get quick and good coverage for painting later on. Primer always helps rugged up your paintjob, even if you are using cheap craft paints like the ones I show above. I included this piece because the upcoming paintjob I use isn't for everyone. It is keyed to match dirty, smudgy, sloppy, post apocalyptic industrial terrain. But i think this shot shows the potential for other uses. It also shows how painting ameliorates the irregularity of the rivets. They look a lot better here.

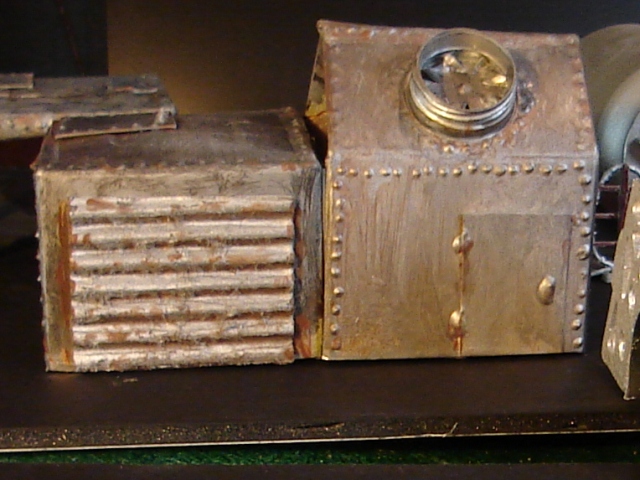

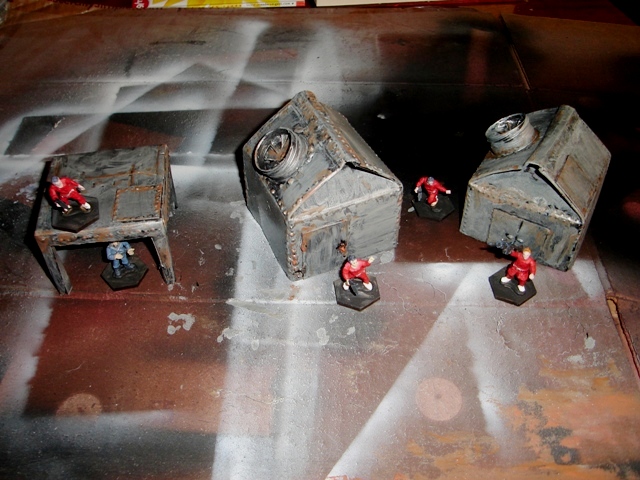

Dirty, Smudgy, Sloppy, Post Apocalyptic Paintjob

Metallic paints are always so ... well ... metallic. They work well to highlight or draw attention to parts and make them shiny and new. My building, however, is not shiny and new. A great trick I have learned is to start with the shiny paint and put a daub of a regular color in it. This results in a muted, but still metallic look. You may have to experiment to find a ratio you like. The less regular paint, the less muted. I used silver and pewter grey for these. After painting the base coat, while it is still wet, I added rust by drybrushing brown over rivets, joints, and anywhere two pieces come together. Since the basecoat is still wet, you can blend it in a bit. Overtop of that, I added a few drybrush hits of bright orange, to give some depth to the rust look.

And, no, you're not seeing half-double. :) I threw in an older one of these that I had done a while back to show how they look multiplied up. Actually, the scratchboard I am working on wouldn't make a bad piece of messed up industrial tarmac...

UPDATE:

We had a full quart sized creamer container donated after posting this, so with the extra material, we went for a full attached garage. The top and bottom piece were kept relatively the same size as the other buildings, which left us a whole middle section for fanblades, doors, and plates. The corrugated cardboard = corrugated tin trick should be old hat to some, but, even for us we find examples of how to use it helpful, stimulating, and motivating us to new work ... because who really could have too much terrain?

Junkyard

This is a nice easy piece of terrain that shows what you can do if you just put in a little time. The steps for making the ruined cars are very easy to follow, and with a little elbow grease, you can have as big a junkyard as you want.

Car Molds

The big "secret" for this piece is making lots of wrecked cars. The technique is simple. Find a car or two of a reasonable size for your minis. Wrap the car in aluminum foil. Two layers. Pull the molded piece of foil off the car. Repeat.

Aluminum Foil? Really?

Yes, really, but not just that. After you make the molds and distort them as you see fit, you should hit them with a base coat of spray adhesive, then a coat of primer. This will make them a bit more rigid. But we're not done yet. Next you need a coat of colored paint (and possibly a nice dirty brown wash for grime) and a layer of spray sealant (We used matte sealant since these aren't shiny, new cars). Now the wreck should be fairly rigid. However, to make it stand up to regular gaming use, we also strengthen them with some foam blocks and supports underneath.

You may also notice the blocks of cars that have gone through the compressor. These are made when we pull off a foil mold, and it just mushes up or tears.

Concrete Slabs

It is important to base your piles of cars, because the center of gravity is too high, otherwise. As soon as the first figure gets placed in a corner, the whole thing will fall over. Fortuntately, this is a junkyard. We took some foamcore, roughed up the edges, and painted it grey. That should do nicely.

Rinse and Repeat

After a few iterations, you should have a nice junkpile going. Since we are using foil molds for the cars, it is very easy to get different looking wrecks with a little stretch and smush before the painting and blocking.

Miscelanea

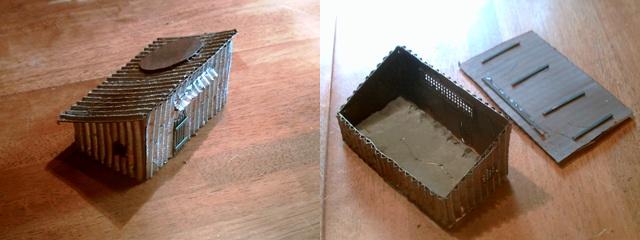

You need some miscelanea in a junkyard. We've thrown in a few bottlecap barrels, the pieces of an old airplane model that got broken (see ... it really is a junkyard!) and a corrugated tin shack in the back. The shack is just carboard around one of the car bases. Roof option. Well, you've seen enough of the junkyard ... now git!

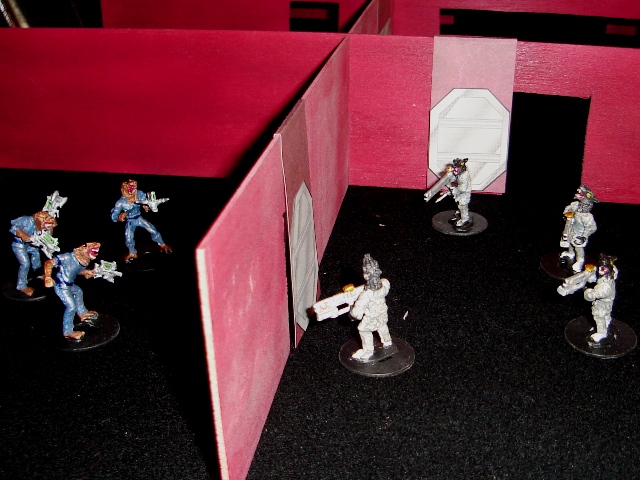

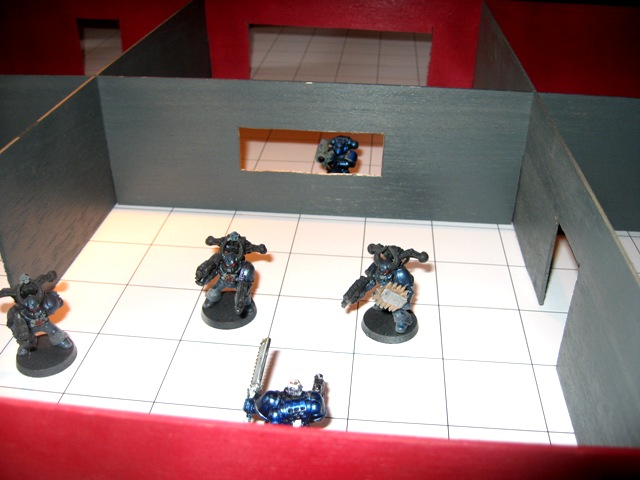

"SlotHouse" Modular Building

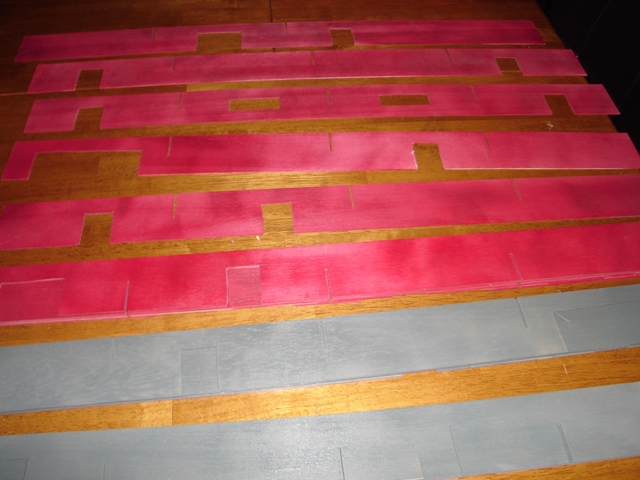

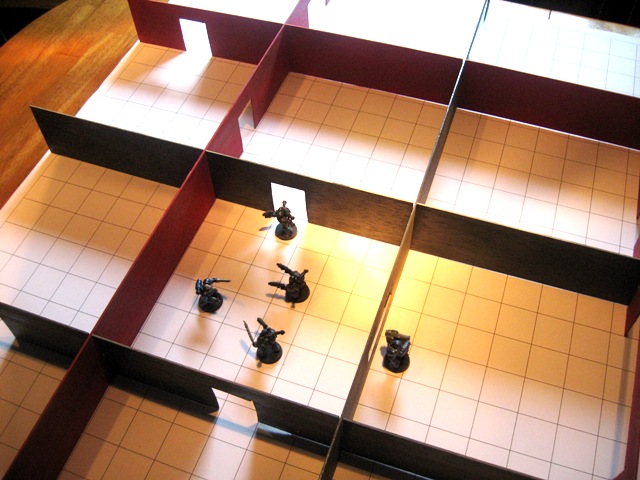

This is a quick and functional way to make a decent area of modular interior terrain for low cost. It is nothing more than making "above" and" below slots in balsawood slats. After that, you can put in doorways, paint them, and deploy your forces.

They're not very dressed up in these pictures to show the basics of how the idea works. Something simple like a brick or stone pattern stamp can quickly throw some dungeon atmosphere in. Because they are self standing and fairly rigid, you can print out doors and windows, fold them in half and hang them over the holes. It even allows for cheap easy opening and closing doors that don't look half bad and stand up (well, hang over) on their own -- the Holt Grail of terraindoordom.

These ones were done with nine inch increments, however, you could space them any way you want. You can even put optional slots ... like, put an extra slot at six inches, but it doesn't have to be used all the time. These ones are also just the regular three foot sections, however you can vary the size to get variation in the layout as well.

Back to the Index

No, you go water the plants!

A question was posted on TMP about the feasability of using some GW pieces to make vicious plants. We took that as a challenge, or task, or excuse to buy more minis and waste time painting them.

This may be more primitive, but it was just as fun and actually turned out well enough for us to want to show it around. Very simple, these are just the GW torsos mentioned in the TMP post smooshed to old HeroClix figure bases with Crayola Model Magic clay, then painted up.

I always put some adhesive on what I want the clay to stick to. It dries soft, but firm enough, but it doesn't adhere. After sticking the torso in the muck, I used a pencil to open up a hole in the middle, then tamped the outside back against the tentacles. My original thought was to put giant flourescent colored flower petals around the outside of the business end of the predatory plants, but that just wasn't working. So instead, I just popped a few pieces of floral wire in the clay to add some additional biological miscelanea to the pieces.

Painting these guys up was also a happy experiment. Normally, I prime figures with Krylon indoor-outdoor paint in a color that I want to be an undertone of the whole piece. About halfway through, I ran out of the green I was using. So I went back to grab black as a catchall primer coat. Well, I saw the metallic blue there, and though it would be nicely related to green, so I went with that instead. The mix of the two colors turned out so nice, I decided just to spray paint the pieces in toto. All it took was a splurtz of red in the centers then a dusting of khaki from far away to give these guys a nice look. I went ahead and finished them with a double coat of clear sealant. When you apply (Krylon?) spray sealant too thick, it becomes like a translucent white haze over the piece. This usually ruins figures, but sometimes it can be used to even out and neutralize a piece. I think it ended up with a decent effect.

I only did a minimal bit of painting after the spraypaint. The tips of the tentacles got Apple Barrel flourescent yellow paint. This stuff is horrible for regular painting, since, no matter what I put under it as a base or primer, it doesn't adhere well and barely covers after multiple coats. That, however, makes it really good for making a dayglo color flim like coat. Like, say, pollen?

At the Hoard of Bits price, this was $10 of parts for nine figures. That's a little above my regular "one buck a figure" limit for being cheap. If I had stayed with 3 torsos per plant, it would have hit right at one dollar. But I think having the three "big" ones with four tentacles was worth it.
